Landing platform for drones
Platform for landing/takeoff multipurpose drones, with predisposition to fit on different vessel types. Made with low specific weight and high corrosion resistance material. Studied and tested in different configurations: fixed, equipped with self-leveling system, with patented protective barrier folding automatically.
DOWNLOAD CATALOGUE

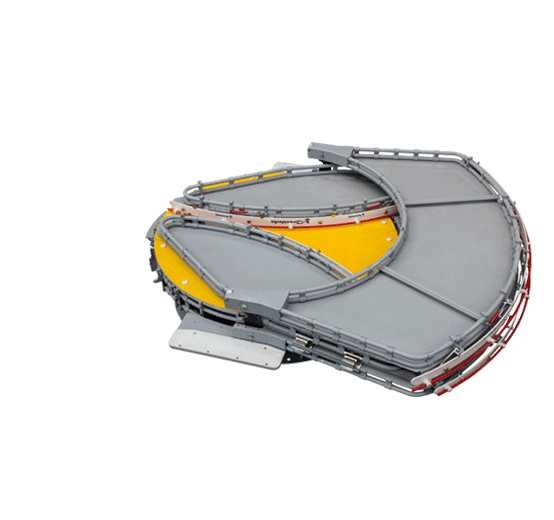

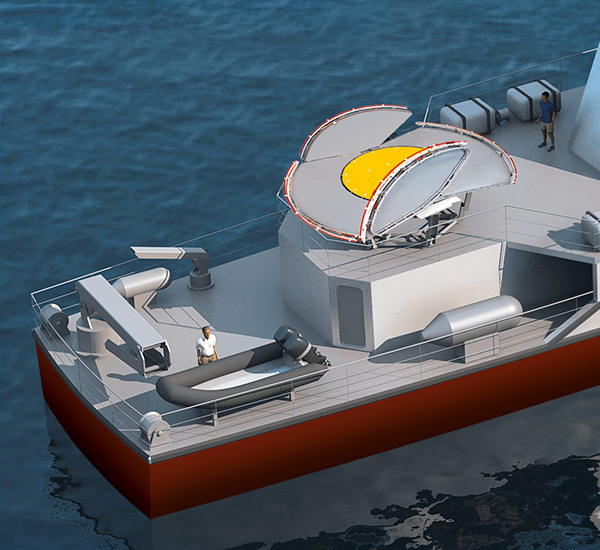

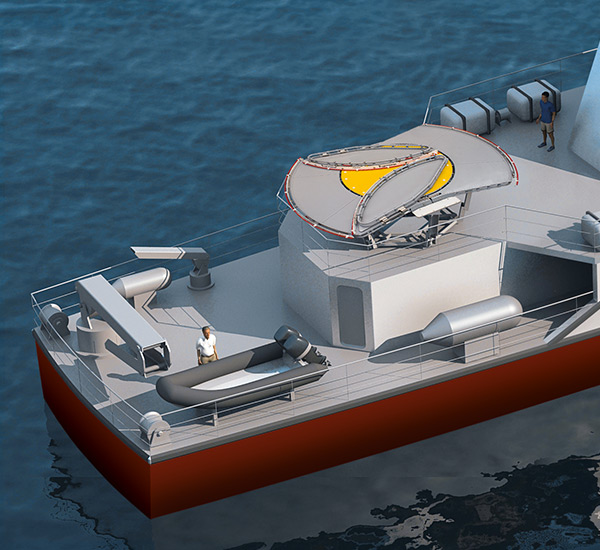

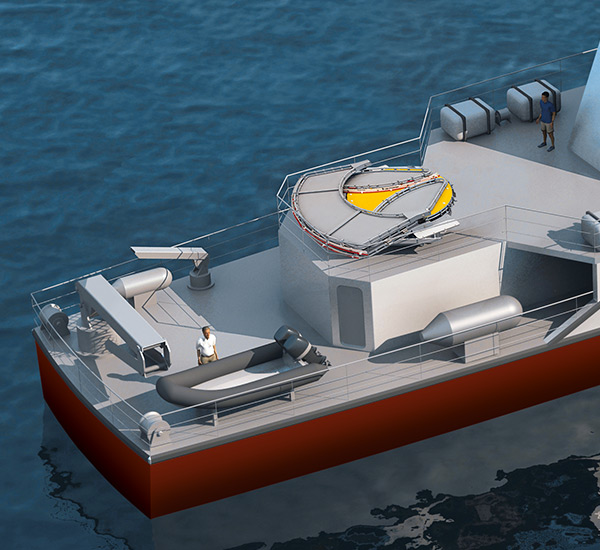

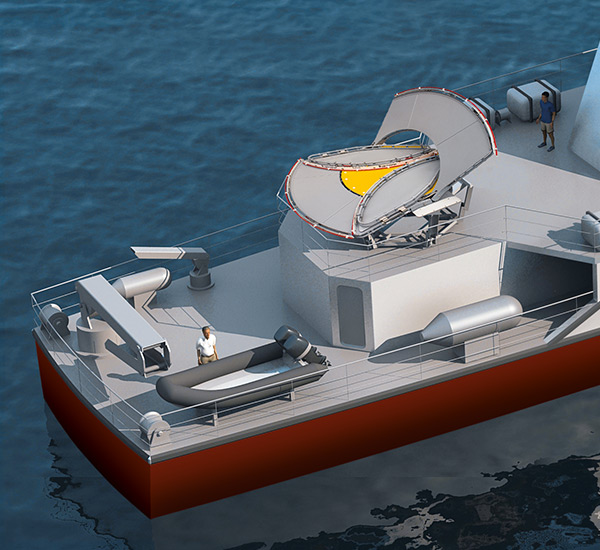

PLATFORM OPENING STEPS
Quality without compromises
SELF-LEVELING PLATFORM
When the platform is completely open
it is possible to raise a protective railing,
available as an optional, along the entire
surface of the landing platform.
The operation is made easier
thanks to radial gas pistons which
facilitate the rise of the handrails.

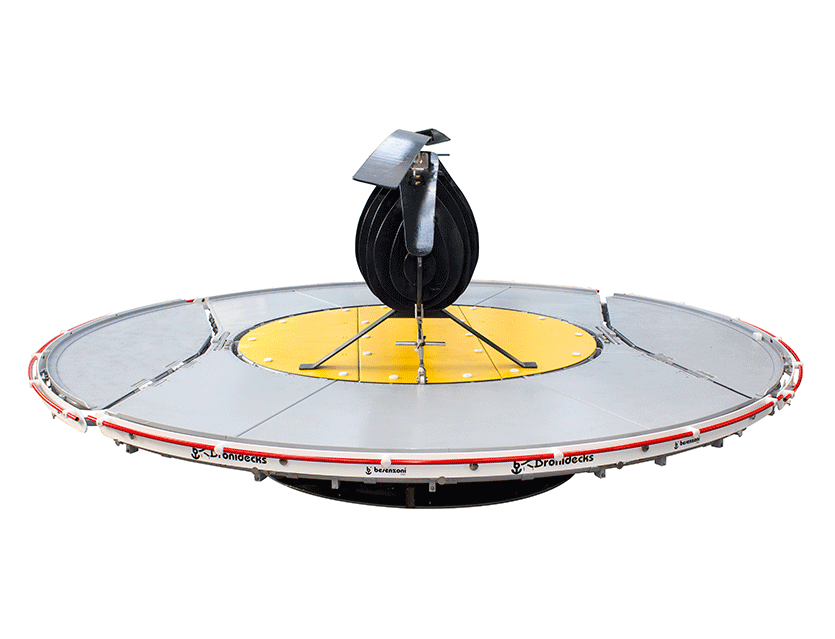

The self-leveling platform compensates
a rolling of 15° and pitching of 10°.
DRONE LOCKING EASY
The main benefit of a folding and self-leveling platform, such as top of the range,
It is to be able to be installed also on medium/small vessels
and to constantly maintain the base in a horizontal position.
The platform is provided with self-leveling safety systems:
• Two independent hydraulic circuits with back-up function
• A system of storage batteries able to level the platform in case
of failure of the hydraulic pump.

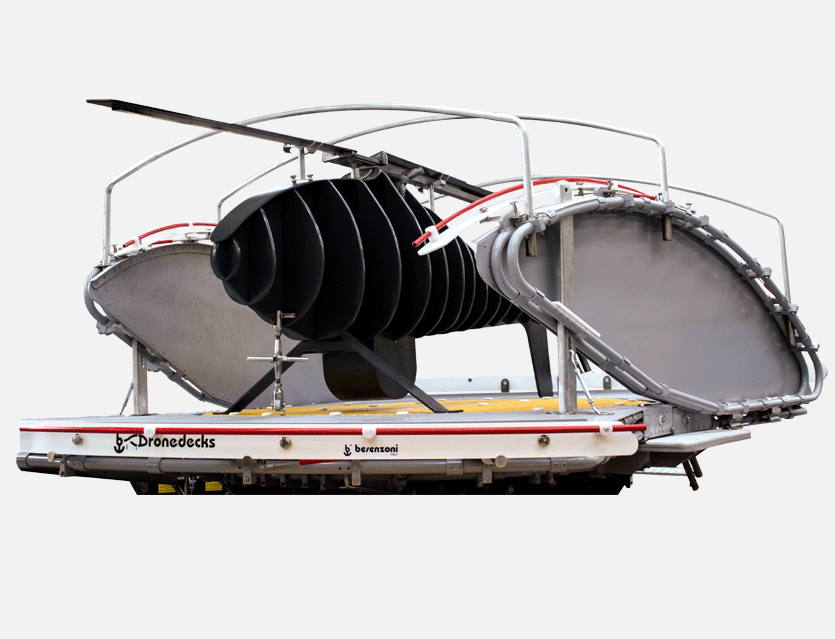

Another benefit is the ease of the drone locking on the platform with rapid hooks.
Furthermore, with a simple positioning of the lateral wings
it can get a shelter from wind and showers.
