- Remove the power source from the system that controls
the combined ladder/gangway.
- Install the BUC receiver/adaptor far away
from heat sources and electromagnetic disturbances.

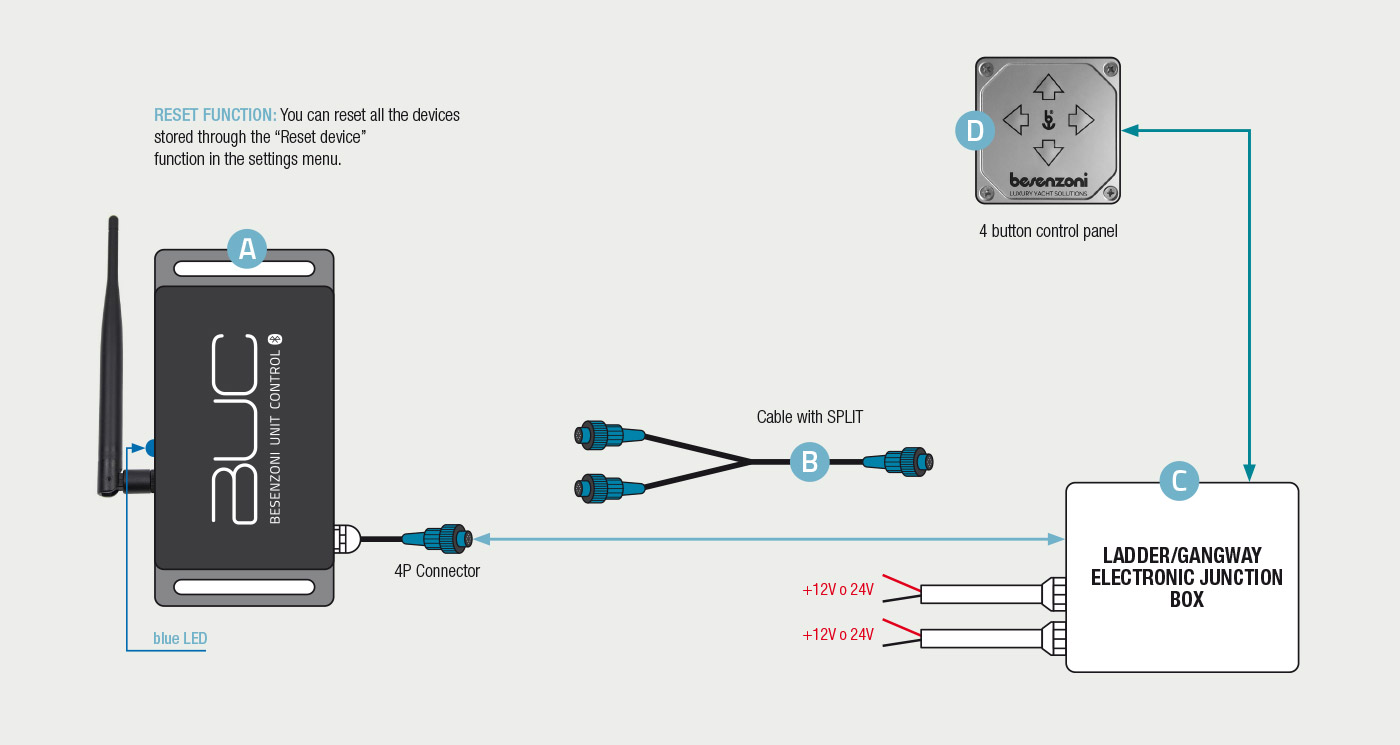

Connect the connector cable of the BUC Besenzoni Unit Control to the electronic control unit of the combined ladder/gangway:

Option 1: In the case in which the electronic control unit is already equipped with double input (from 2018 onwards) leave the electronic board
connected fig. C on the control panel of the combined ladder/gangway fig. D.
- Connect the receiver / adapter BUC fig. A directly to the combined ladder/gangway electronic board shown in fig. C in the free socket on the electronic board.

Option 2: In the event that the electronic control unit does not have a double input, use the cable fig. B to connect both the BUC and the control panel fig. D.

- Take note of the password on the label attached to the front of the BUC. - Restore power to the system.

ADD ONE MORE BUC: If you want to add the management of a second device (eg to move both the Besenzoni combined ladder/gangway and passerelle) you can do this simply by entering the drop-down menu in the settings section and clicking on “add new device”; select the device corresponding to the name indicated on the label of the 2nd BUC.

- Activate the device’s Bluetooth.
- Activate localization in case of problems in the research of the BUC.
- Open the App on your device.
- Click Settings from the dropdown menu in the top left-hand corner.
- Choose and set an unlock code which you will also use in the future.

- Deactivate the Demo mode and tick “Start in Command View”.
- Click “Set Device Code” and insert the 5 digit security code
shown on the BUC label.
- Click “Select device” and select the device that corresponds to the name shown on the BUC label: e.g. Name: Besenzoni1010.
- Click the Dropdown menu button.

- Click Command and then the screen to start the App.
- The commands to control the combined ladder/gangway
will appear in the next screen.
- In order to correctly control the combined ladder/gangway,
you must press and hold the selected command,
otherwise an Error message will show up on the device’s screen.
- To restart the controlling operation, press and hold the command again.


Note Settings: by selecting Launch Commands when you next open the App, once you have inserted your unlock code, you will have immediate access to the commands section.
Controlling the ladder/gangway via the App still allows you to use the remote control that you have been supplied with

- Remove the power source from the system that controls
the combined ladder/gangway.
- Install the BUC receiver/adaptor far away
from heat sources and electromagnetic disturbances.

- Disconnect the cable connected to the control panel from the electronic junction box  fig. C and connect it directly to the BUC  fig. A.
- Take the connector fig. B connect it first to the BUC and then to the control panel socket inside the electronic control unit fig. D.

- Take note of the password on the label attached to the front of the BUC.
- Power the BUC circuit board with the electronic junction box line stabilised at 12/24 volts Restore power to the system.

ADD ONE MORE BUC: If you want to add the management of a second device (eg to move both the Besenzoni combined ladder/gangway and passerelle) you can do this simply by entering the drop-down menu in the settings section and clicking on “add new device”; select the device corresponding to the name indicated on the label of the 2nd BUC.

RESET FUNCTION: You can reset all the devices stored through the “Reset device” function in the settings menu.

- Activate the device’s Bluetooth.
- Activate localization in case of problems in the research of the BUC.
- Open the App on your device.
- Click Settings from the dropdown menu in the top left-hand corner.
- Choose and set an unlock code which you will also use in the future.

- Deactivate the Demo mode and tick “Start in Command View”.
- Click “Set Device Code” and insert the 5 digit security code
shown on the BUC label.
- Click “Select device” and select the device that corresponds to the name shown on the BUC label: e.g. Name: Besenzoni1010.
- Click the Dropdown menu button.

- Click Command and then the screen to start the App.
- The commands to control the combined ladder/gangway
will appear in the next screen.
- In order to correctly control the combined ladder/gangway,
you must press and hold the selected command,
otherwise an Error message will show up on the device’s screen.
- To restart the controlling operation, press and hold the command again.


Note Settings: by selecting Launch Commands when you next open the App, once you have inserted your unlock code, you will have immediate access to the commands section.
Controlling the ladder/gangway via the App still allows you to use the remote control that you have been supplied with
